Electric Cargo Passenger Tricycle with 1000W Motor （DH-216）
Performance Characteristics
1. The vehicle features a streamlined, rounded design with smooth lines, offering durability and robustness, as well as a fresh and attractive appearance. The materials used are sturdy and resistance to deformation under pressure.
2. Equipped with front headlights, turn signals, and integrated rear combination lights; electric horn and reverse gear voice warning system; includes one manually adjustable side mirror on each side;

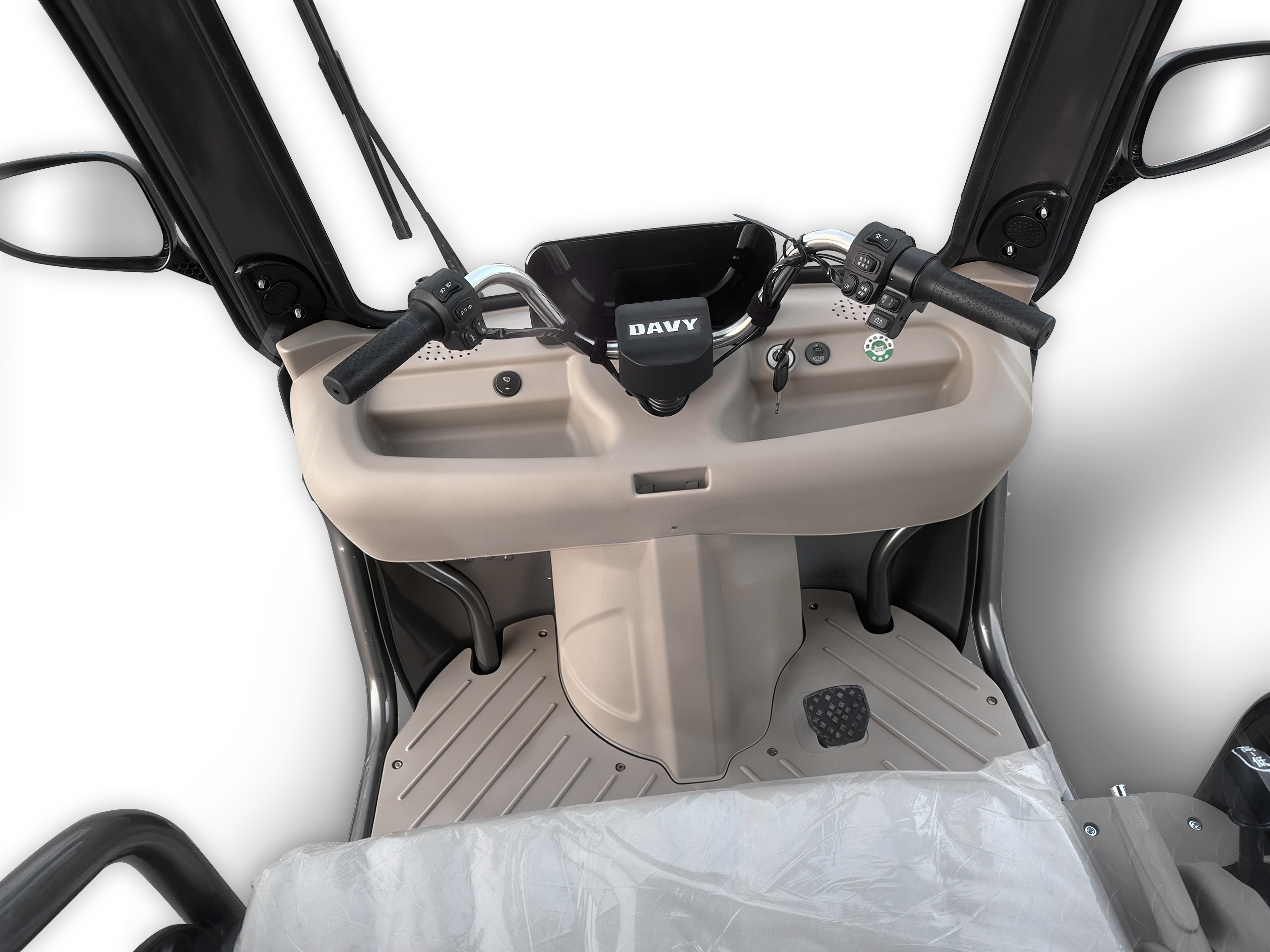

3. A sleek and modern LED dashboard, high-gloss ABS front grille, showcasing human-centric design elements;
4. Vehicle exteriors are customized according to customer requirements,including spray-painted finishes and reflective warning signs(rear reflectors) at the rear of the vehicle;
5. Advanced production processes with high standardization,including sheet metal stamping, automotive spot resistance welding, cathodic electro-coating, and assembly line final assembly.
Technical Specifications
Item | Parameter |
Vehicle size: mm | 3080*1170*1725 |
Carriage size: mm | 1600*1100*420 |
Wheelbase：mm | 2070 |
Track Width：mm | 960 |
Load capacity：kg | >280 |
Curb weight: kg | 225 |
Battery capacity | 60V58AH |
Standard voltage：V | 60 |
Power of walking model：W | 1000W |
Controller | 15-tube Controller |
Tire Size | 3.75-12 front; 4.00-12 rear |
Control walking mode | Push-button type |
Braking method | Mechanical Drum type |
Maximum gradient | ≥15° |
Voice-Controlled reverse system | Controllable Reverse Voice Alert System |
COMPANY PROFILE
Jiangsu Davy New Energy Vehicle Technology Co., Ltd. was established in 2017 with a registered capital of 30 million yuan. It is a high-tech enterprise specializing in the design, R&D, production, and sales of electric motorcycles, new energy sanitation vehicles, golf carts sightseeing vehicles, and so on. The company boasts a comprehensive and diverse product lineup, with business operations spanning both domestic and international markets.
Headquartered in Nanjing, Jiangsu, the company operates two major production bases in Huaian and Xuzhou, covering a total area of 100,000 square meters. It features four complete production lines: stamping, welding, coating, and final assembly. By leveraging top-tier supply chain resources nationwide, the company delivers stylish and innovative electric vehicles to the market while providing dealers with high-profit margins.
Davy has earned numerous certifications and accolades, particularly excelling in specialization, precision, uniqueness, and innovation. Notable achievements include being named a Provincial Specialized, Fine, Unique, and Innovative Enterprise. Other key honors are:
National High-Tech Enterprise
Municipal Enterprise Technology Center
CCC Mandatory Certification
Additionally, the company has been listed in the "World Manufacturers" directory and recognized as an Outstanding Sanitation Equipment Supplier, showcasing its comprehensive strength across R&D, manufacturing, and market services.
Municipal Enterprise Technology Center
CCC Mandatory Certification
Additionally, the company has been listed in the "World Manufacturers" directory and recognized as an Outstanding Sanitation Equipment Supplier, showcasing its comprehensive strength across R&D, manufacturing, and market services.
styles to meet your needs.
FAQ
1. Q: Can I get samples?
A: Sure.We are honored to offer you samples for quality check.
A: Sure.We are honored to offer you samples for quality check.
2. Q: What is your main product?
A: Electric tricycle and all kind of spare parts, battery, charger etc.
A: Electric tricycle and all kind of spare parts, battery, charger etc.
3. Q: Do you have products in stock?
A: Sorry. All products have to be produced according to your order including samples.
A: Sorry. All products have to be produced according to your order including samples.
4. Q: What is the MOQ?
A: Our MOQ is usually 1*40'HQ. Sample and LCL Shipment accepted but cost higher.
A: Our MOQ is usually 1*40'HQ. Sample and LCL Shipment accepted but cost higher.
5. Q: What is the delivery time?
A: Usually 15-30 days according to different models.
A: Usually 15-30 days according to different models.
6. Q: What is the payment term?
A: T/T, L/C at sight.
A: T/T, L/C at sight.
7. Q: Can you do customized product for me?
A: Sure. We can produce according to your sample or technical drawing.Your special requirements for color, logo, design, package, carton mark etc. are also accepted.
A: Sure. We can produce according to your sample or technical drawing.Your special requirements for color, logo, design, package, carton mark etc. are also accepted.
8. Q: How about your product quality?
A:We always insist on making every product with our heart, paying attention to every detail, to provide customers with the best quality products. We do have strict quality control process and 100% testing before delivery.
A:We always insist on making every product with our heart, paying attention to every detail, to provide customers with the best quality products. We do have strict quality control process and 100% testing before delivery.
9. Q: What is your shipping term?
A: EXW, FOB, CFR,CIF.
A: EXW, FOB, CFR,CIF.
